4 Inch Inline exhaust fan | Inline Duct Fan | Silent Mix Flow Fan | Circular Inline Fan / Air Circulation System / 2 Speed | 45W Copper Motor | Air Flow 310m3/h | 2 Speed

4 Inch Inline exhaust fan | Inline Duct Fan | Silent Mix Flow Fan | Circular Inline Fan / Air Circulation System / 2 Speed | 45W Copper Motor | Air Flow 310m3/h | 2 Speed

Rs. 4,290
Rs. 4,290 Rs. 6,286 32% OFF
You save Rs. 1,996 on this order!
Sold out
Taxes included. Shipping calculated at checkout.
Free Shipping
Free Shipping
COD Available
COD Available
7 Days Return
7 Days Return
1 year warranty
1 year warranty
SHIPPING TO
110001
SELECT Size
Only 10 left — order soon!
Order on WhatsApp
View full details

Videos from our Founder

Ardnib Exhaust Fan

Reel Video

×

LOWEST PRICE GUARANTEE

Found it cheaper somewhere else? We'll match the price so you always get the best deal.

Claim on WhatsApp

Product Description

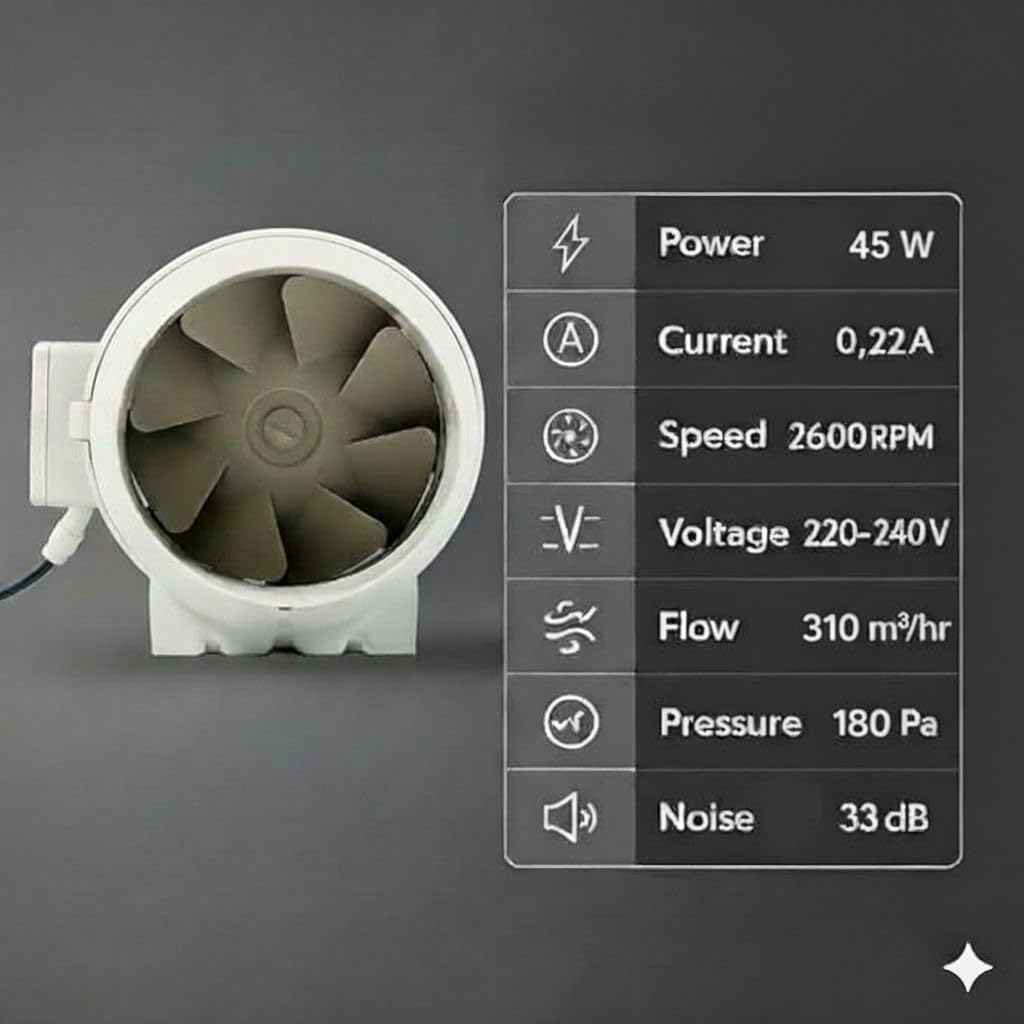

  • Powerful 310 m³/hr Airflow: High-performance 4-inch (100mm) mixed flow inline fan delivers strong and efficient air circulation, ideal for ventilation, exhaust, cooling, and fresh air applications.
  • High Static Pressure – 180 Pa: Engineered for powerful air throw and smooth airflow through long ducts, bends, filters, and ventilation systems without major airflow loss.

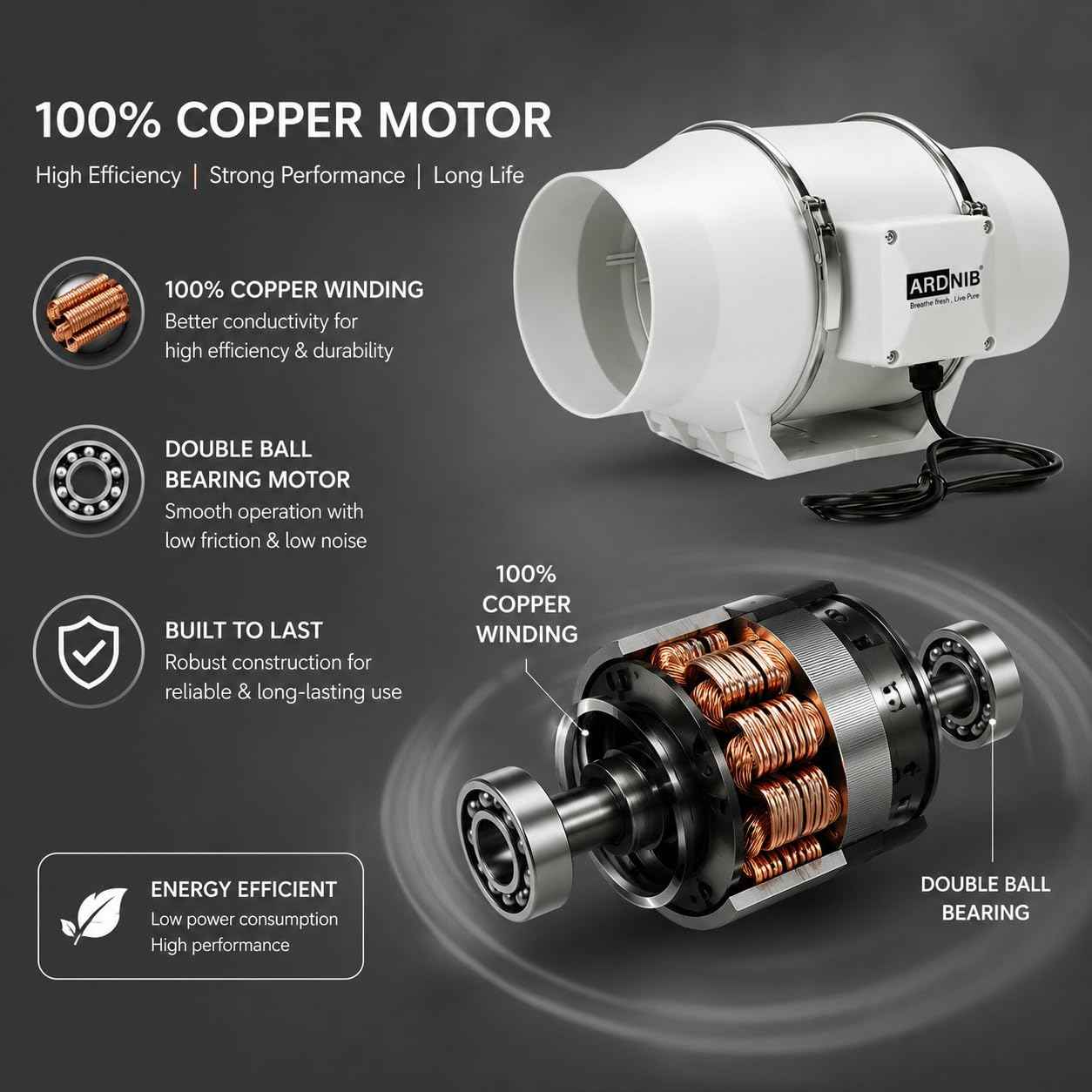

  • Energy Efficient 45W Copper Motor: Equipped with a heavy-duty 100% copper motor that ensures reliable performance, better durability, and efficient power consumption.
  • High-Speed Performance – 2600 RPM: Advanced high-speed motor technology provides faster air movement and improved ventilation efficiency for residential and commercial spaces.
  • Low Voltage Compatibility: Operates safely on standard 220–240V power supply, making it suitable for homes, kitchens, grow tents, offices, factories, and workshops.
  • Durable Double Ball Bearing Motor: Premium double ball bearing design offers smoother operation, lower maintenance, extended motor life, and stable long-hour performance.
  • Optimized Mixed Flow Blade Design: Special aerodynamic impeller design combines high airflow with strong pressure while helping reduce vibration and improve efficiency.
  • Ideal for Multiple Applications: Perfect for kitchen exhaust systems, hydroponics grow tents, bathroom ventilation, industrial ducting, server rooms, warehouses, and commercial HVAC setups.
  • 1 Year Motor Replacement Warranty: Comes with a 1-year motor replacement warranty against manufacturing defects for added reliability and peace of mind.
  • The centrally placed motor and impeller allow easy installation, removal, and maintenance without disturbing the duct pipeline, even in compact spaces. The fan can be installed at any angle and supports series connection for higher air pressure performance.

Technical Specifications

Brand
Ardnib (Bindra Industries India Pvt. Ltd.)
Model
AIF-100
Product Type
Silent Mixed-Flow Inline Duct Fan
Colour
White
Duct Size
4 Inch / 100 mm
Maximum Airflow
220 m³/h (129 CFM)
Maximum Static Pressure
200 Pa
Power Consumption
28 Watts
Noise Level
Approx. 25-28 dB(A)
Speed Settings
2 Speed
Input Voltage
220V - 240V AC
Frequency
50 Hz
Fan Type
Mixed-Flow Inline
Installation
In-Duct (Horizontal, Vertical, Any Angle)
Usage
Exhaust and Fresh Air Supply
Body Material
ABS Plastic
Is Dishwasher Safe
No
Warranty
1 Year
Country Of Origin
India

Frequently Asked Questions

What is a Silent Mix Flow Inline Duct Fan and how is it different from a regular exhaust fan?

A mixed-flow inline duct fan installs inside the ductwork (between walls, in ceiling cavities, or along chimney pipes) rather than on a wall or ceiling surface. It combines axial and centrifugal fan technology to deliver high airflow at high static pressure — ideal for longer duct runs where regular wall-mounted exhaust fans lose efficiency.

Where can this fan be used?

It can be used for kitchen chimney booster ventilation, bathroom exhaust, server room cooling, hydroponic grow rooms, air circulation in long duct runs, fresh air intake systems, and general ventilation for homes, offices, and commercial spaces.

Can it be used as both exhaust and fresh air intake?

Yes. The fan supports bidirectional installation — it can be mounted for air exhaust (pushing stale air out) or fresh air supply (pulling fresh air in), simply by reversing the installation direction.

What is the mixed-flow impeller design?

The mixed-flow impeller combines the benefits of axial flow (high volume) and centrifugal (high pressure) designs. This results in significantly higher airflow and static pressure than a standard axial fan while maintaining ultra-low noise levels.

How noisy is this fan during operation?

The fan operates in a silent range of approximately 25 to 35 dB(A) depending on the size variant, making it suitable for installation in bedrooms, offices, living rooms, and other noise-sensitive areas.

Can it be installed at any angle?

Yes. It supports flexible mounting — horizontal, vertical, or at any angle along the ductwork — making it easy to install in tight ceiling cavities, wall chases, and rooftop duct runs.

Is it energy efficient?

Yes. The mixed-flow motor design delivers maximum airflow at minimum power consumption, making it significantly more energy-efficient than traditional centrifugal or axial duct fans of comparable airflow capacity.

What duct size is compatible with this fan?

Each variant is size-specific — the 4 inch (100mm) variant requires 100mm ductwork, the 6 inch (150mm) requires 150mm ductwork, the 8 inch (200mm) requires 200mm ductwork, and so on. Always match the fan size to your existing duct diameter.

Does it come with a speed controller?

Some variants come with a 2-speed option. A compatible external speed controller can also be used for variable speed control. Check the specific variant listing for included accessories.

What is the warranty on this product?

It comes with a 1-year manufacturer warranty from Ardnib (Bindra Industries India Pvt. Ltd.).
